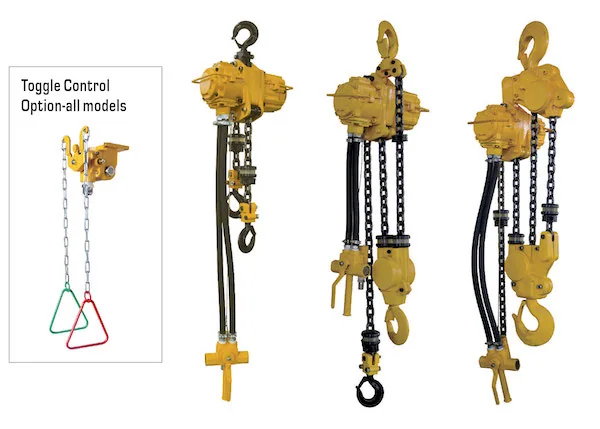

King KAHM-LP Low Air Pressure Mining Hoist P4 Series

FEATURES: • Designed, manufactured & tested in compliance with SANS 1638. • Manufactured by our ISO 9000 & ISO 9001 C.E. certified manufacturer. • Designed for vertical lifting & horizontal pulling operation. • Zinc plated, corrosion & abrasion resistant, case hardened, 12.5mm diameter Grade 80 DAT load chain compliant with SANS 3077, exceeds 6:1 safety factor. • Forged, yielding, fully marked (for traceability) type hooks complete with tip engaging style heavy duty, cast, Safety Latches. • Bolted hook covers to allow Shank wear inspection and lubrication. • Dual brake system - Friction & Cone brake. • Exhaust air is also channelled through the gearbox housing for continuous gear cooling. • Pendant Control operation to isolate operator from the suspension zone and load path. • Remote air connection for safety if Air Hose becomes disconnected or damaged. • Lube free, low friction material vanes & internal motor long-life automatic lubrication system. • Automatic, internal, Air Motor Lubricator provides Air Motor lubrication for 250 operating hours. • Internal pressure regulating device restricts overloading. • Balanced motor design results in equal performance in either direction on either underhook. • 6:1 Safety factor at maximum WLL rating. • Designed to perform at WLL between 3-6 bar working air pressure at the motor inlet. • High operating speed of 3.5 m/min at 6 bar working air pressure under 3000kg load. Heavy duty retractable carry handles on either sides of the hoist. High starting torque Air Motor.
