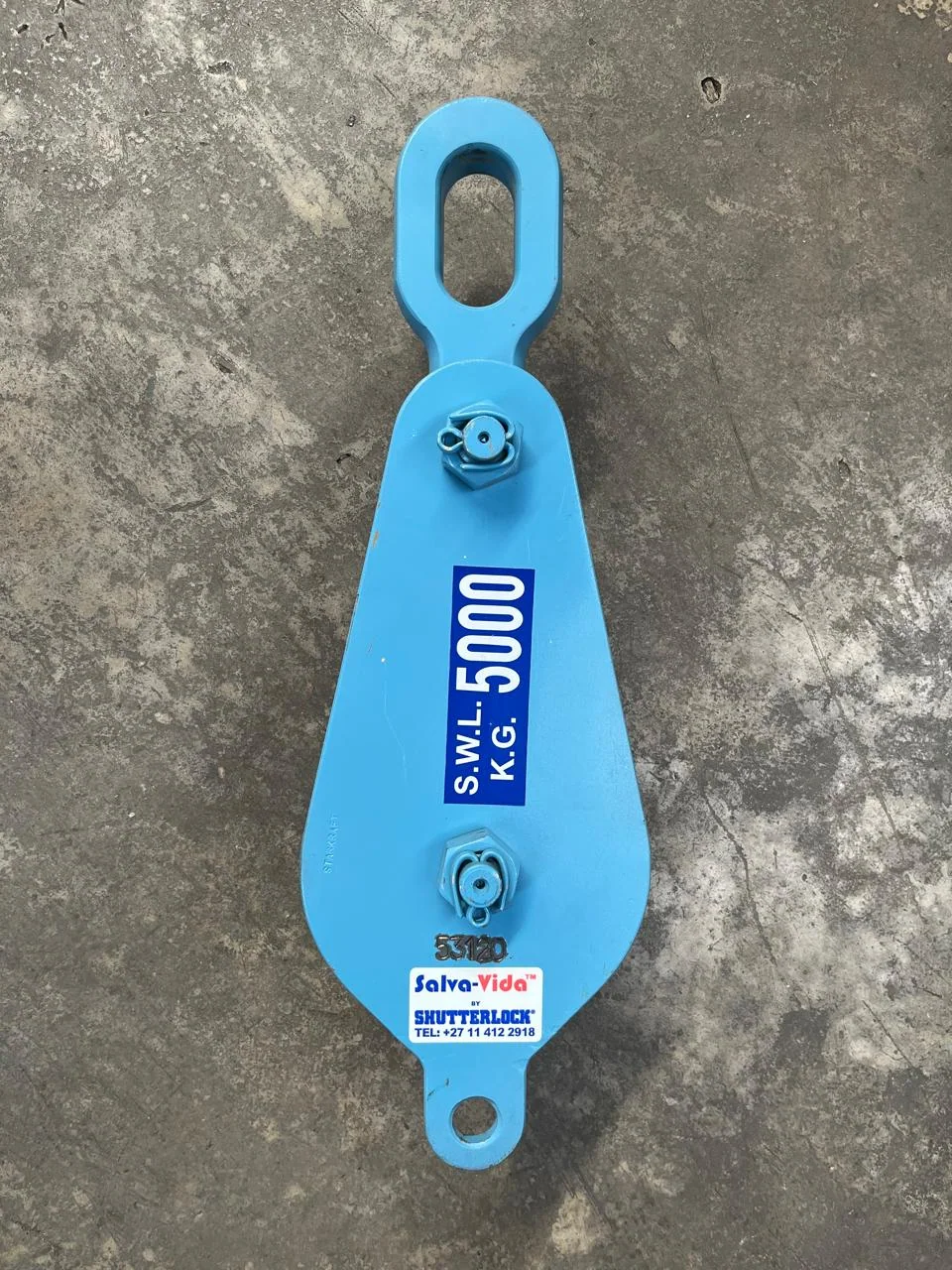

Rope Deflection Snatch Block

Part no: GB0005x1 Guide block 5T SWL Sheave diameter minimum of 150mm (or manufactured to customer specification on request) To accommodate Steel wire rope of 20 - 54mm diameter   The (Salva-Vida) 5000 kg deflection block is designed to deflect steel wire (winder) rope with minimal friction, while maintaining load efficiency and safety. Ideal for changing the direction of the wire rope, cable, or synthetic rope without changing the load itself, while reducing strain on equipment. What does a deflection block do In lifting and rigging applications, a deflection block: Changes the direction of a hoist or pull line Allows a winch or hoist to be positioned in a more convenient location Helps routing the wire rope around obstacles Reduces side loading on equipment by guiding the rope along a desired path Important A deflection block does NOT provide mechanical advantage when used to change direction The block and attachment point must be rated for the forces involved, as the load on the block can be substantial depending on the angles of deflection The sheave diameter should be suitable for the wire rope diameter to prevent rope damage, a typical calculation is 10 x the rope diameter Key Features High-Strength Construction Smooth Rope Guidance The design incorporates the same features as a snatch block once load is applied the unit can not release the load. Versatile Application Corrosion-Resistant Finish Easy Installation Suitable for rope from 20mm up to 54mm S.W.L. 5000kg with a factor of safety of 4:1 Load tested and certified to 100% of SWL
