Catalogue / Beam Clamps, Spreaders & Load Monitoring

Code: Beam Crawls Geared

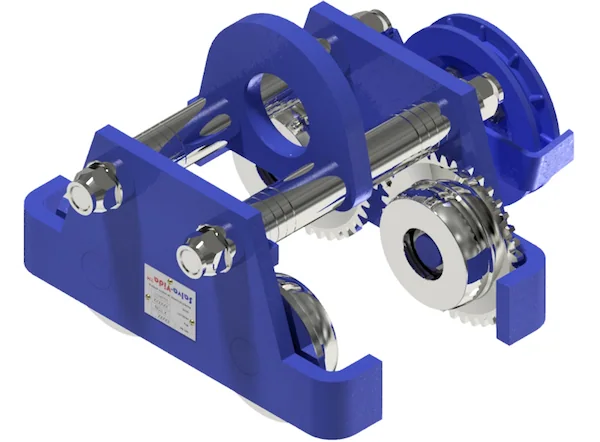

Salva-Vida Adjustable Beam Crawls Geared Type
Salva-Vida Adjustable Beam Crawls Geard Type
• Beam crawls/ trolleys are used to suspend and/or move a load using an overhead beam.
• Working Load Limit Capacity from 250kg to 20T.
• Beam crawls are available in push type or geared type.
• Geared Crawls are trolleys driven with hand/messenger chain.
• The hand chain facilitates wheel movement when the operator pulls the chain.
• 100% Proof Tested to 1.5 times the Working Load Limit
• Proudly South African Manufactured Product
• Supplied in a Black Powder Coated Finish

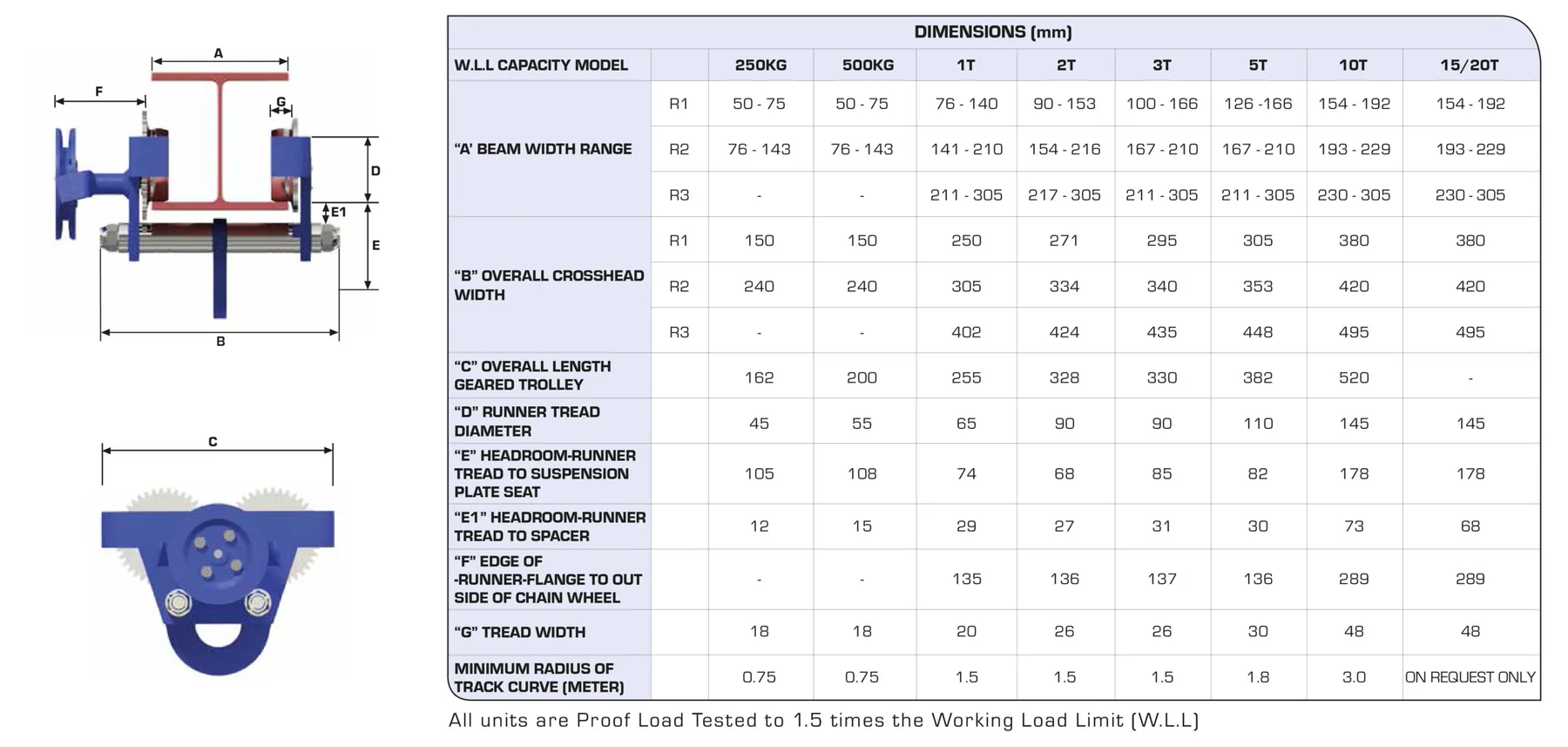

• Standard crawls suit beam widths up to 305mm and are fully adjustable.
• The precise adjustment of the crawl ensures that the load is centred, which prevents any lateral movement on the beam.
- • 250 kg
- • 500 kg
- • 1 Ton
- • 2 Ton
- • 3 Ton
- • 5 Ton
- • 10 Ton
- • 15/20 Ton
