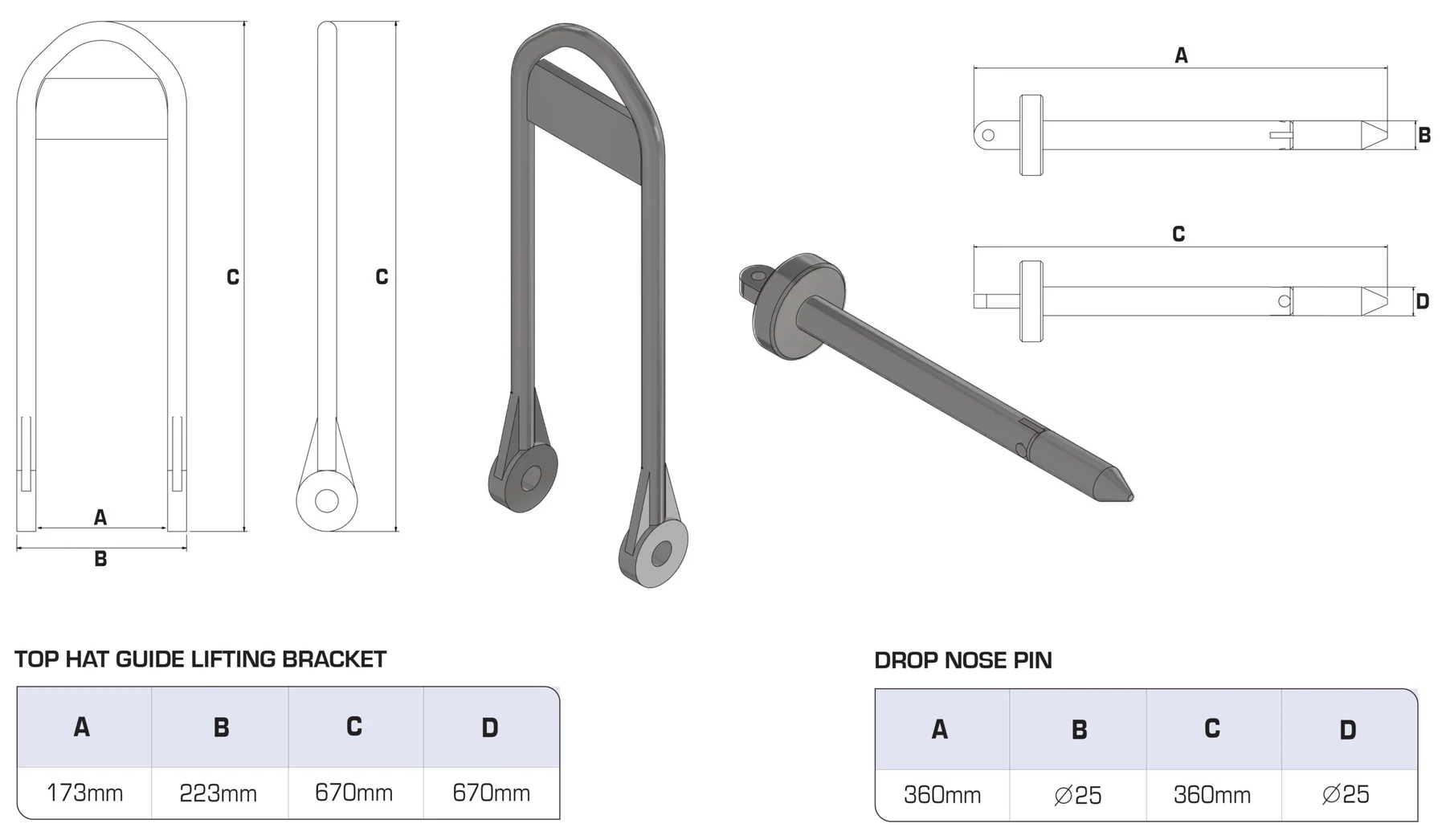

Salva-Vida – Tophat Guide Lifting Bracket

APPLICATION
• The Top Hat Guide Lifting Bracket is designed for lowering Top Hat Guides into place in the shaft while equipping.
Featuring a robust design, the bracket offers a reliable solution for lifting and slinging.

FEATURES:
• Manufactured in South Africa
• Suitable for guides from 232mm x 98mm up to 340mm x 175mm.
• Drop Nose Pin for ease of use and securing the load
• Rated to 2 ton W.L.L.
• All steelwork and workmanship in accordance with SANS 10162 and 10160 (1200H & 1200HA)
• Quick and easy installation
• Design can be a amended for other guide dimensions
