Catalogue / Rigging Hardware
Code: G-2150
Crosby® Bolt Type Chain Shackles G-2150

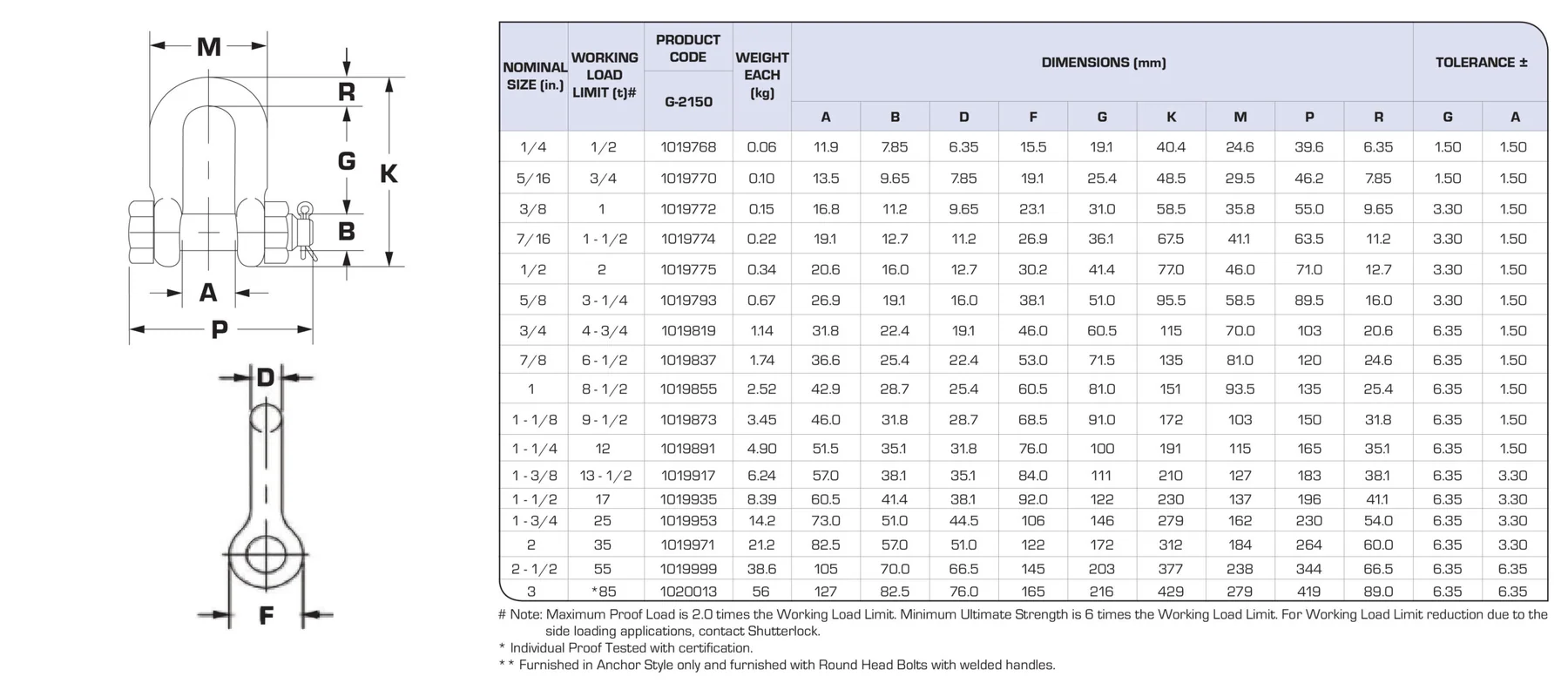

G-2150 Bolt Type Chain Shackle
• Forged, Quenched & Tempered, will alloy pins.
• Working Load Limit and Grade 6 permanently shown on every shackle.
• Hot-dip galvanised. 85t shackles have hot-dip galvanised bows and the bolts are Dimetcoted and painted red.
• Sizes 3/8 inch and below are mechanically galvanised.
• Fatigue rated at 20,000 cycles at 1.5 times the Working Load Limit.
• Approved for use at -40°C (-40° F) to 204°C (400° F).
• Meets or exceeds all requirements of ASME B30.26
• Sizes ½t - 25t meet the performance requirements of EN13889:2003.
• Shackles 55t and smaller can be furnished proof tested with certificated to designated standards.
• Shackles can meet Charpy impact testing of 42 joules min. ave. at -20°C (-4°F), upon special request.
• Look for the Red Pin® ...the mark of the genuine Crosby quality.
Specification sheets
- • 1/2 ton
- • 3/4 ton
- • 1 ton
- • 1-1/2 ton
- • 2 ton
- • 3-1/4 ton
- • 4-3/4 ton
- • 6-1/2 ton
- • 8-1/2 ton
- • 9-1/2 ton
- • 12 ton
- • 13-1/2 ton
- • 17 ton
- • 25 ton
- • 35 ton
- • 55 ton
- • 85 ton
