Catalogue / Rigging Hardware
Code: G-2130

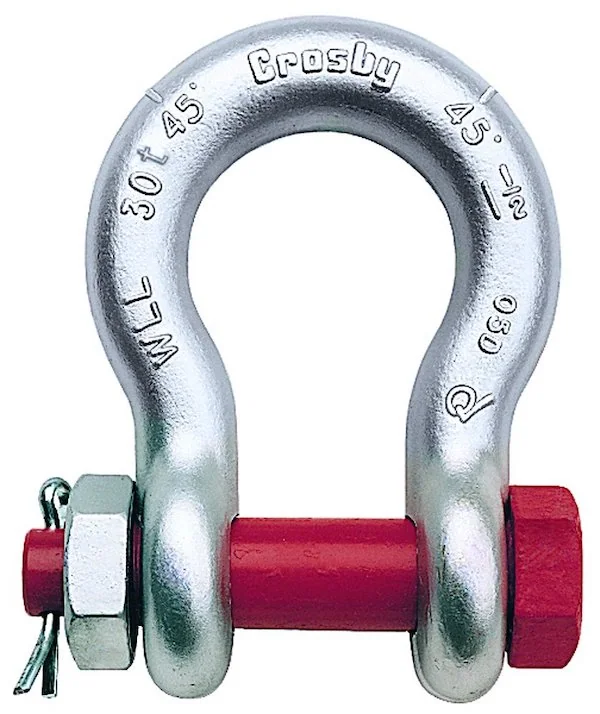

Crosby® Bolt Type Shackle G-2130
G-2130 Bolt Type Anchor Shackle
• Working Load Limit and Grade 6 permanently shown on every shackle.
• Forged, Quenched & Tempered, will alloy pins.
• Hot-dip galvanised. 85t, 120t and 150t shackles are all hot dip galvanised bows and the bolts are Dimetcoted and painted red.
• Sizes 3/8 inch and below are mechanically galvanised.
• Fatigue rated at 20,000 cycles at 1.5 times the Working Load Limit.
• Approved for use at -40°C (-40° F) to 204°C (400° F)
• Meets or exceeds all requirements of ASME B30.26
• Shackles 85tins and larger are individually proof tested to 2.0 times the working load limit.
• Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting appliances available, on special request and may incur additional costs.
• 3.1 Certification as standard available for Charpy and statistical proof test from 3.25t up to 25t to DNV2.7-1 and EN13889 i
• Shackles can meet charpy requirements of 42 joules min. ave. at -20°C (-4°F), upon special request.
• Meet the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade A, Class 3.
• Look for the Red Pin® ...the mark of the genuine Crosby quality

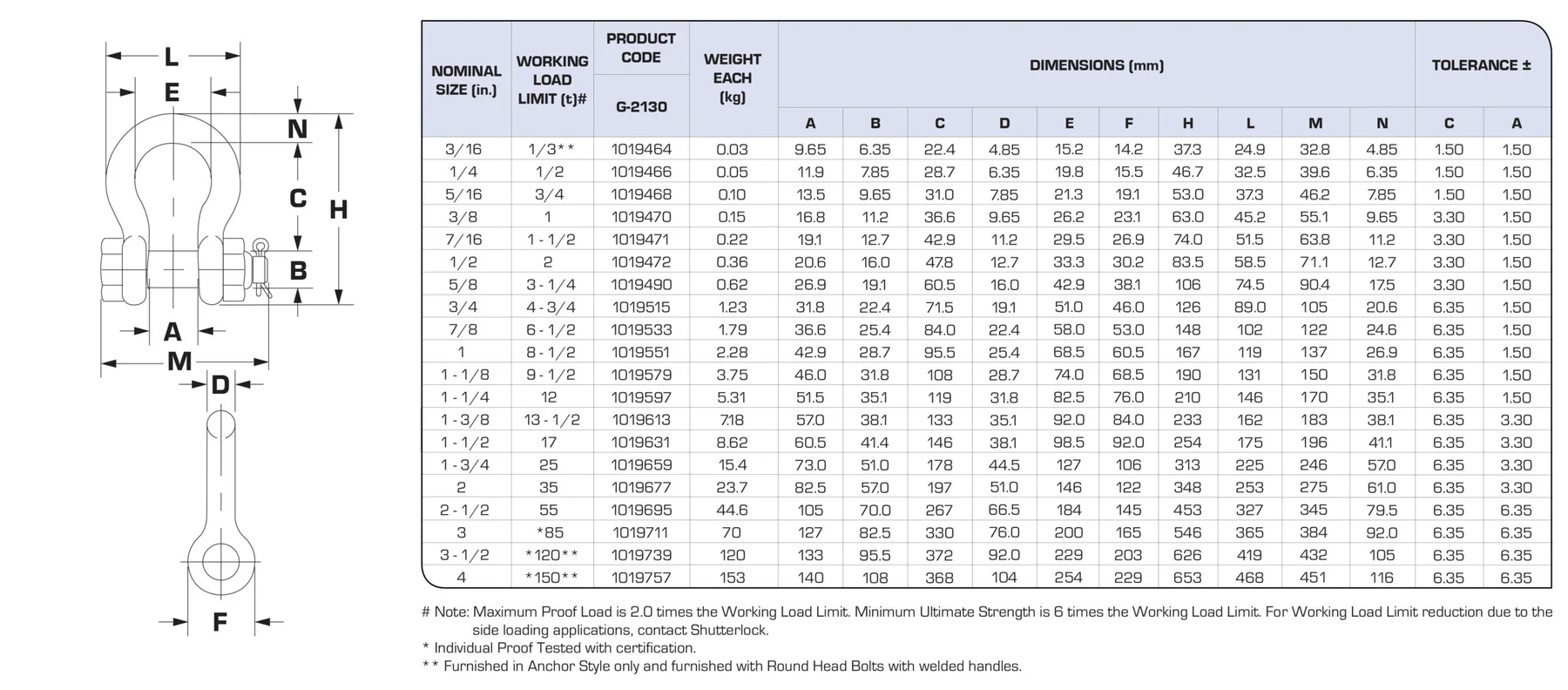

Specification sheets
- • 1/3 ton
- • 1/2 ton
- • 3/4 ton
- • 1 ton
- • 1-1/2 ton
- • 2 ton
- • 3-1/4 ton
- • 4-3/4 ton
- • 6-1/2 ton
- • 8-1/2 ton
- • 9-1/2 ton
- • 12 ton
- • 13-1/2 ton
- • 17 ton
- • 25 ton
- • 35 ton
- • 55 ton
- • 85 ton
- • 120 ton
- • 150 ton
