Crosby® Platinum Line - A-1343 Welded Master Link
Grade 100 A-1343 Welded Master Link
• Alloy Steel – Quenched and Tempered.
Individually proof tested to values shown below, with certification.
• Design Factor of 5 to 1.
• Proof Tested with 70% inside width special fixtures sized to prevent localised point loading per EN1677-4.
• Each main link is marked with Product Identification Code (PIC) for material traceability, Grade, CE, Chain size and the “CG” (Crosby Group).
• A-1343 master links are type approved to DNV Certification.
• Engineered Flat for use with S-1325A coupler link
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.
• Meets or exceeds all requirements of ASME B30.26

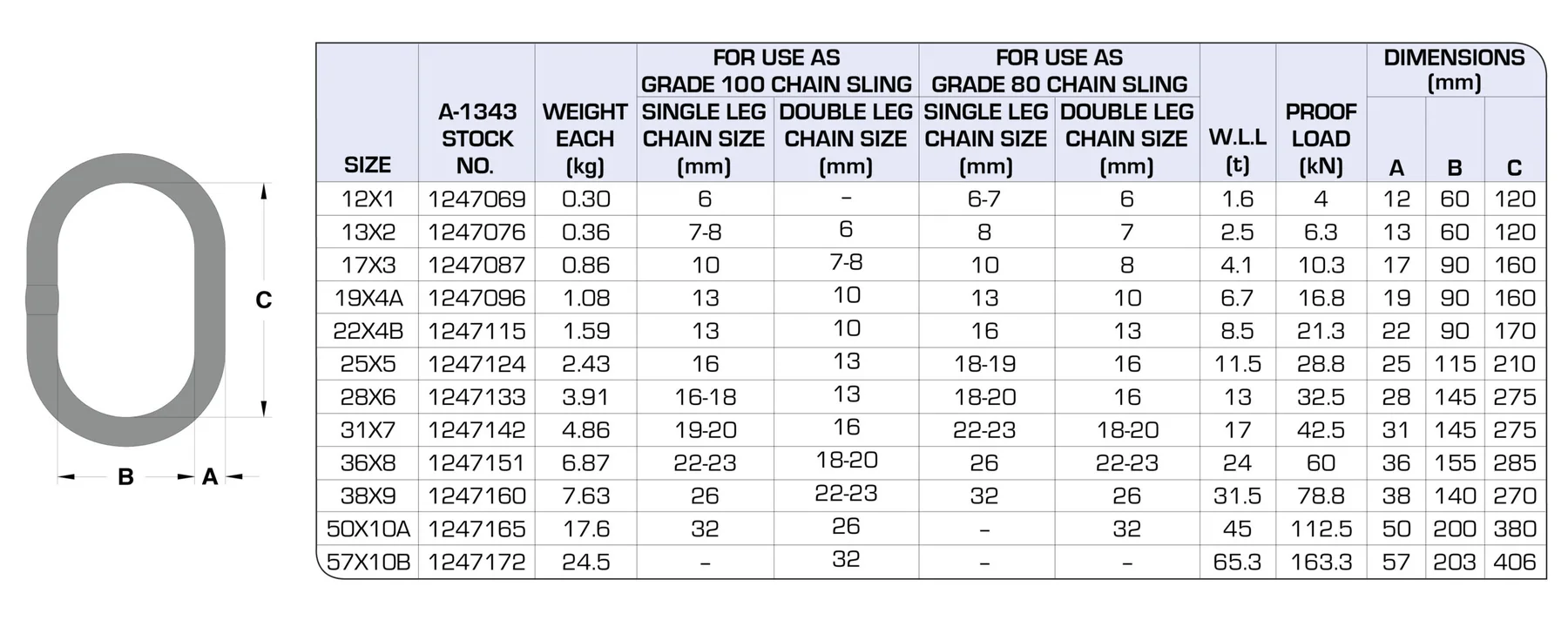

Specification sheets
- • 1.6 ton
- • 2.5 ton
- • 4.1 ton
- • 6.7 ton
- • 8.5 ton
- • 11.5 ton
- • 13 ton
- • 17 ton
- • 24 ton
- • 31.5 ton
- • 45 ton
- • 65.3 ton
