NGK Grips

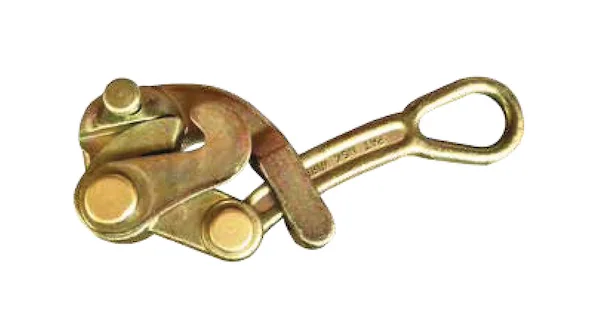

NGK Wire Grips The range of NGK (NAGAKI) wire grips are made from forged steel. They are durable yet lightweight and feature a Chromate finish that protects them from rust and corrosion. All of the models are rated for a variety of wire sizes and types – that means fewer wire grips are needed. Due to its instant release system, NGK Wire Grips can be inserted or removed from a wire with ease. The grips have large eye openings that are compatible with standard hooks and easily attach to all model pullers. Safe Working Load: 0.5t MIN.ROD DIA: 1mm MAX.ROD DIA: 10mm Weight: 0.3kg Steel Rod, Barbed Wire & Messenger Wire Safe Working Load: 1t MIN.ROD DIA: 2.6mm MAX.ROD DIA: 15mm Weight: 0.7kg Bare Copper Cable, Wire Rope, Messenger Wire Small and Large eye Safe Working Load: 2.0t MIN.ROD DIA: 4mm MAX.ROD DIA: 22mm Weight: 1.5kg Bare Copper Cable, Messenger Wire Also available for bare aluminium conductor 4mm to 22mm(large eye) Safe Working Load: 2.3t MIN.ROD DIA: 3.2mm MAX.ROD DIA: 12.7mm Wire Rope Large eye Safe Working Load: 3.0t MIN.ROD DIA: 8mm & 16mm MAX.ROD DIA: 22mm & 32mm Weight: 3.1kg Bare Copper Cable, Messenger Wire, Wire Rope, Trolley Cable Also available for bare aluminium conductor 16mm to 32mm(large eye) Safe Working Load: 4.0t MIN.ROD DIA: 13mm & 28mm MAX.ROD DIA: 20mm & 35mm Wire Rope Also available for bare aluminium conductor 18mm to 35mm(large eye)
