Catalogue / Rigging Hardware
Code: Grade 10 Clevis Grab Hook
YOKE® Grade 10 Clevis Grab Hook
Grade 100 Clevis Grab Hook
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G800 products.
• Manufactured in accordance with DIN PAS 1061, EN1677-1 and ASTM A952/A 952M.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400° C.
• Not for use with the Omega Link
• Enables full WLL while in use, thanks to supporting wings which prevent chain link deformation.

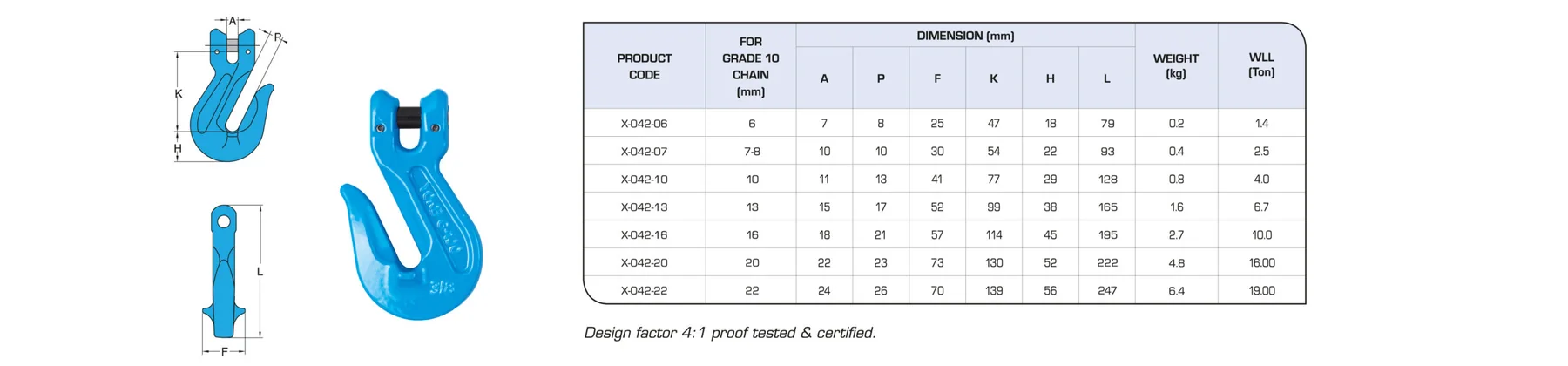

Specification sheets
- • 1.4 Ton
- • 2.5 Ton
- • 4.0 Ton
- • 6.7 Ton
- • 10.0 Ton
- • 16.00 Ton
- • 19.00 Ton
