Code: Grade 10 Clevis Self Locking Hook
YOKE® Grade 10 Clevis Self Locking Hook
Grade 100 Eye Self Locking Hook
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G800 products.
• Manufactured in accordance with EN1677-3 and ASME B30.26, ASME B30.10, PAS1061
• Certified by DGUV GS-0A-15-05.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400° C.
• Magnaflux crack detection is performed on 100% on each batch.

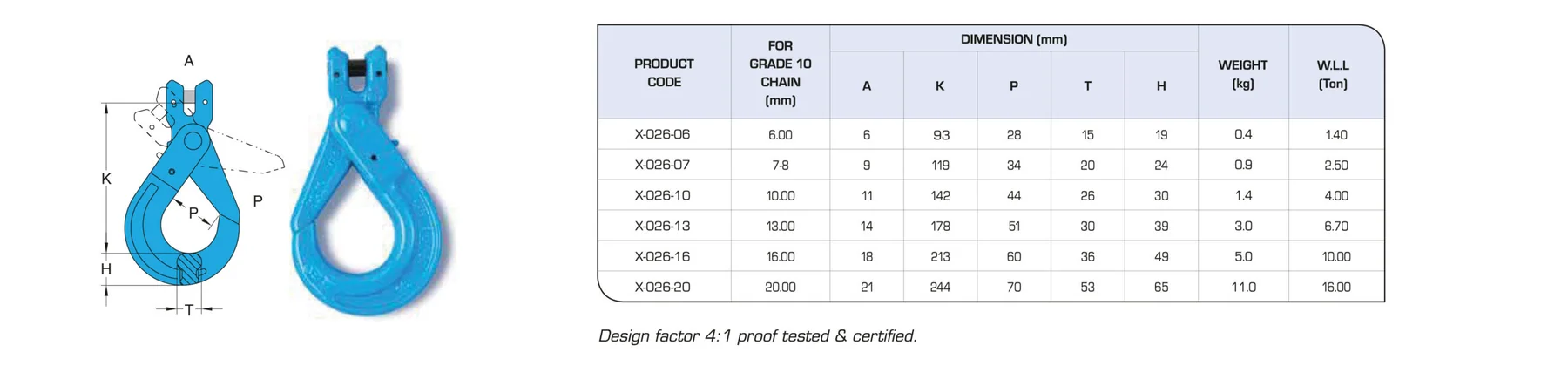

Specification sheets
- • 1.40 Ton
- • 2.50 Ton
- • 4.00 Ton
- • 6.70 Ton
- • 10.00 Ton
- • 16.00 Ton
