Catalogue / Rigging Hardware
Code: Grade 8 Clevis Master Link Code “YG”
YOKE® Grade 8 Clevis Master Link Code “YG”
Grade 100 Single Leg Clevis Master Link
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G800 products.
• Manufactured in accordance with EN1677-1 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400° C.
• Magnaflux crack detection is performed on 100% on each batch.

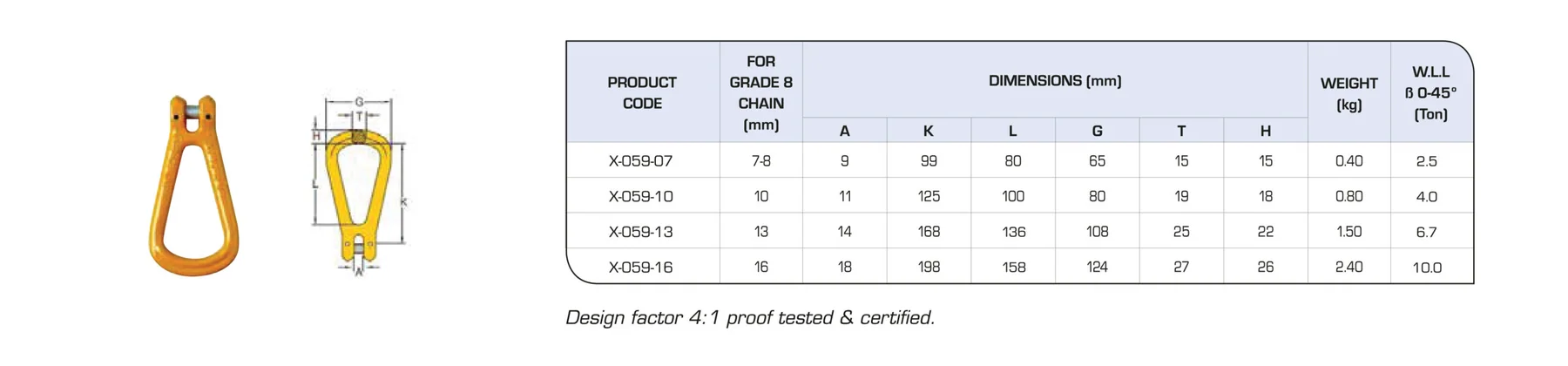

Specification sheets
- • 2.5 Ton
- • 4.0 Ton
- • 6.7 Ton
- • 10.0 Ton
