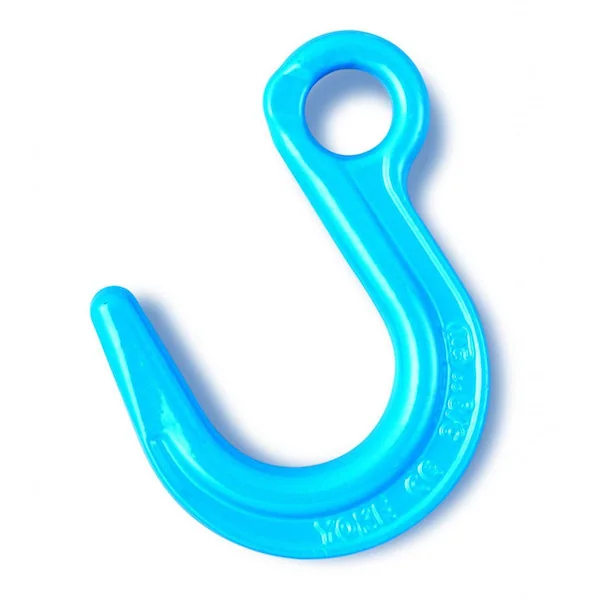

YOKE® Grade 8 Eye-Type Foundry Hook

Grade 100 Eye Foundry Hook • Quenched and Tempered Alloy Steel • At least 25% greater WLL than traditional G800 products • Manufactured in accordance with DIN PAS 1061 and ASTM A952/A 952/M, EN1677-1. • Certified by DGUV GS-0A-15-05 • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. • Design Factor 4:1 • Fatigue rated to 20,000 cycles at 1.5 times the WLL. • Tempering temperature minimum 400° C. • Designed for the assembly of chain slings where wide throat openings are necessary. • Before using the hook, check whether hooks without safety latches are allowed to be used for the particular application.
