Code: Key Eye Point

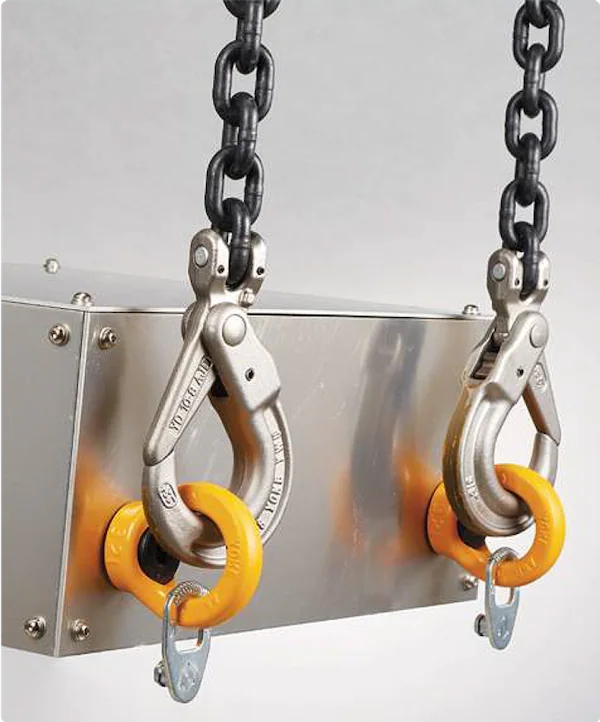

Yoke® Key Eye Point
YOKE KEY EYE POINT
• Rotates through 360° adjustable in the direction of the load.
• Manufactured from alloy steel, quenched and tempered.
• Tested in accordance with EN1677-1.
• Certified by DGUV GS-OA 15-04.
• Manufactured and tested in accordance with EN1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are Metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required.
» Taiwan Patent
» China Patent
» French Patent
» Australian Patent
» Mexican Patent
» Japanese Patent

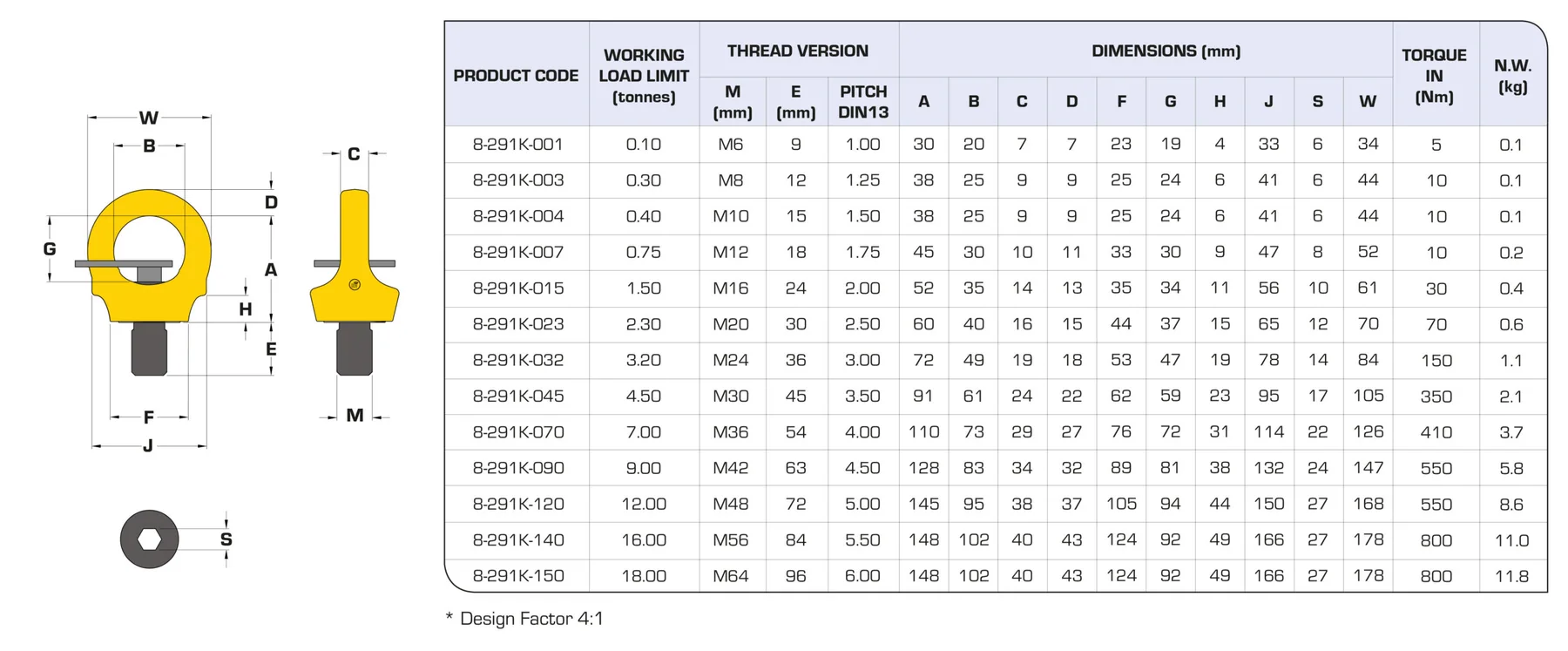

- • 0.10 tonnes
- • 0.30 tonnes
- • 0.40 tonnes
- • 0.75 tonnes
- • 1.50 tonnes
- • 2.30 tonnes
- • 3.20 tonnes
- • 4.50 tonnes
- • 7.00 tonnes
- • 9.00 tonnes
- • 12.00 tonnes
- • 16.00 tonnes
- • 18.00 tonnes
